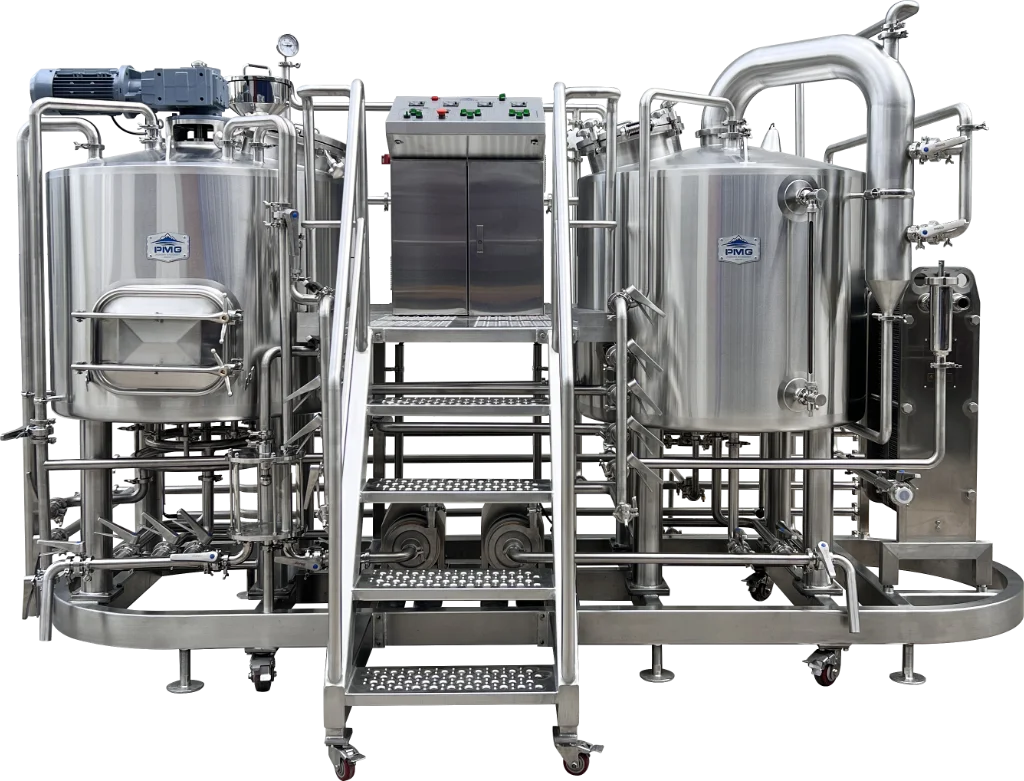

Brewpub Systems

5hL to 12hL brewhouses designed to produce high quality beers in your venue
Brewpub SystemsBrewpub SystemsBrewpub SystemsBrewpub Systems
PMG Brewpub Systems are available in these configurations:
  • 2 Vessel (Mash/Lauter, Kettle/Whirlpool)
  • 3 Vessel (Mash, Lauter, Kettle/Whirlpool)
Heating Method:
Electric
Electric
Gas
Gas
Steam
Steam

Brewhouse Platform

  • Constructed from 304 Stainless Steel
  • Stainless steel handrail surrounding perimeter of work area
  • Platform to interconnect all brewhouse vessels for easy operation. FRP grating on deck
  • Optional skid for ease of installation

Process Piping

  • Interconnects all tanks and devices with accurate flow diverter panel control
  • Material: 304 Stainless Steel
  • Wort grant to create an air break between tanks
  • All fittings and components for operation

Mash/Lauter Tun

  • ~40% head space
  • Equipped with agitator and hydrator
  • 3mm thick inner layer (SS304)
  • 2mm thick external layer (SS304)
  • 3mm thick top dish head (SS304)
  • 50mm thick PU insulation layer
  • Side spent grain outdoor
  • 360° coverage CIP spraying ball
  • PT100 temperature sensor
  • 100% TIG welded joints
  • 4pcs completely SS304 legs with leveling pads

Kettle/Whirlpool Tun

  • ~40% head space
  • 3mm thick inner layer (SS304)
  • 2mm thick external layer (SS304)
  • 3mm thick top dish head (SS304)
  • 80mm rockwool insulation
  • Top full glass manway φ400mm
  • Tangential inlet on side
  • 24V LED light
  • Equipped with 6*7KW electric heating elements
  • 360° coverage CIP spraying ball
  • PT100 temperature sensor
  • Vent port on dish top with a chimney or condenser
  • With lifting lug on top of tank
  • 100% TIG welded joints
  • 4pcs completely SS304 legs with levelling pads

Wort Pump

  • Flow 3m³/h, lift 24m
  • Sanitary SS304
  • Danfoss VFD controlled on control panel, open impeller
  • Tri-clamp connection
  • Complete valves and fittings

Accessories and Options
